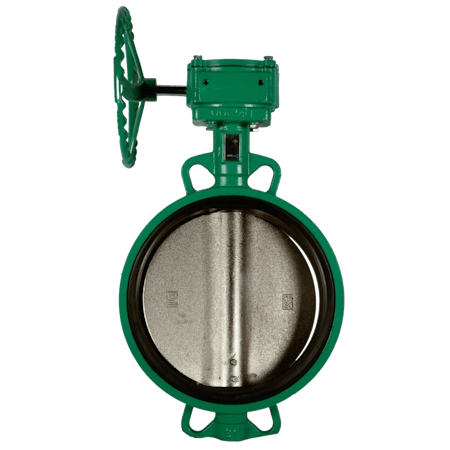

Ductile Iron Butterfly Valve Gearbox
- Weights:
- Sizes:
- Class:
- Pressure:
- Temperatures:
- 5.3kg - 316kg
- DN 50 – 700
- 150
- PN16
- -10°C to 120°C
Application
The VT-N Ductile Iron Butterfly Valve Gearbox is a robust and versatile valve commonly used in industrial applications. Constructed with high-quality ductile iron, this valve exhibits excellent strength and durability, making it suitable for handling various media, including water, gases, and corrosive fluids.
The inclusion of a gearbox enhances the valve’s performance by providing smooth and precise control over the flow of fluids. The gearbox mechanism allows for easy manual operation, allowing users to adjust the valve’s position quickly and efficiently. This feature is especially beneficial in situations where frequent adjustments are required to regulate the flow rate.
The Ductile Iron Butterfly Valve Gearbox design ensures minimal pressure loss, thanks to its streamlined disc and low-friction bearings. This design feature also promotes efficient flow control and reduces energy consumption. Additionally, the valve’s tight shut-off capabilities prevent any leakage, enhancing its reliability and safety.
Recommended: For Pricing, Availability, Advantages, Disadvantages, and Common Industry Uses, see Valvetech Butterfly Valves
Diagram
| # | Part | Material |
|---|---|---|
| 1 | Key | 45# Steel |
| 2 | O-Ring | NBR |
| 3 | Brushing | PTFE |
| 4 | Stem | 420 Stainless Steel |
| 5 | Pin | 316 Stainless Steel |
| 6 | Disc | NPDI or CF8m (SS316) |
| 7 | Seat (replaceable) | EPDM (standard), Nitrile, or Teflon |
| 8 | Body | Ductile Iron A536 |
| 9 | Gearbox | Ductile Iron A536 |
Dimensions
All measurements listed are expressed in millimetres, unless otherwise noted. Product weight is represented in kilograms. DN size is provided in millimetres and NPS size is given in inches. These values correspond to the diagram label and its associated part.
| NPS | DN | A | B | C | øD | øD1 | L | G | B2 | F2 | Kg |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 2 | 50 | 132 | 66 | 43 | 73 | 125 | 25 | 62 | 142 | 140 | 5 |
| 2.5 | 65 | 144 | 75 | 46 | 85 | 145 | 25 | 62 | 142 | 140 | 5 |
| 3 | 80 | 156 | 91 | 46 | 100 | 160 | 25 | 62 | 142 | 140 | 6 |
| 4 | 100 | 171 | 107 | 52 | 131 | 180 | 25 | 62 | 142 | 140 | 7 |
| 5 | 125 | 192 | 122 | 56 | 155 | 210 | 25 | 62 | 142 | 140 | 8 |
| 6 | 150 | 213 | 134 | 56 | 185 | 240 | 25 | 62 | 142 | 140 | 10 |
| 8 | 200 | 246 | 167 | 60 | 234 | 295 | 32 | 78 | 196 | 270 | 18 |
| 10 | 250 | 284 | 203 | 68 | 288 | 355 | 32 | 78 | 196 | 270 | 25 |
| 12 | 300 | 314 | 238 | 78 | 340 | 410 | 32 | 78 | 180 | 270 | 34 |
| 14 | 350 | 336 | 265 | 78 | 407 | 470 | 45 | 78 | 180 | 270 | 42 |
| 16 | 400 | 405 | 320 | 102 | 451 | 525 | 51 | 105 | 235 | 263 | 68 |
| 18 | 450 | 415 | 355 | 114 | 515 | 585 | 51 | 105 | 235 | 263 | 91 |
| 20 | 500 | 460 | 390 | 127 | 556 | 650 | 64 | 105 | 235 | 263 | 114 |
| 24 | 600 | 535 | 435 | 154 | 650 | 770 | 70 | 127 | 295 | 380 | 211 |
| 28 | 700 | 595 | 510 | 165 | 770 | 840 | 66 | 135 | 330 | 380 | 316 |
Other Products
Ductile Iron Butterfly Valve
Trigger Lever VT-N
Weight: 2.7kg – 27kg
Sizes: DN 50 – 300
Class: 150
Pressure: PN16
Temperatures: -10°C to 120°C
Cast Iron Butterfly Valve
Gearbox VT
Weight: 9kg – 205kg
Sizes: DN 50 – 600
Class: 150
Pressure: PN16
Temperatures: -10°C to 120°C
Specifications
Models
VT-N
Body Material
Iron Grade
Seat
EPDM (standard)
Nitrile
Teflon
Disc
Stainless Steel CF8M
NPDI
Standards
Design conforms to DIN EN593
End Standard conforms to DIN EN1092
Face to Face conforms to DIN EN558
Services
Water, Oil, Gas, Steam
Industries
Chemical Industries, Food Industries, Gasses and Oils, Heating and Conditioning (HVAC), Medical Industries, Power Plants, Utility Lines, Water Treatment and Distribution
Priority Media
Ammonium Bicarbonate, Cement (dry), Ethylene Glycol, Flour (dry), Hydrogen Gas, Plastics (dry), Sulphur Dioxide (dry), Sugars (dry), Nitrogen Gas
Inventory Code and Description
TVTNPDIG/BN
VT-N DI B/FLY WAFER NPDI G/B
Ductile Iron Butterfly Wafer Valve NPDI
EPDM Disc Gearbox
TVTSSG/BN
VT-N DI B/FLY WAFER SS G/B
Ductile Iron Butterfly Wafer Valve Stainless
Steel EPDM Disc Gearbox
Also Known As
Duplex Valve
Lug Valve
Quarter Turn Valve
Uni-Flow Valve
